Wireless Differential Pressure and Temperature Sensor

WLRC-DAPS

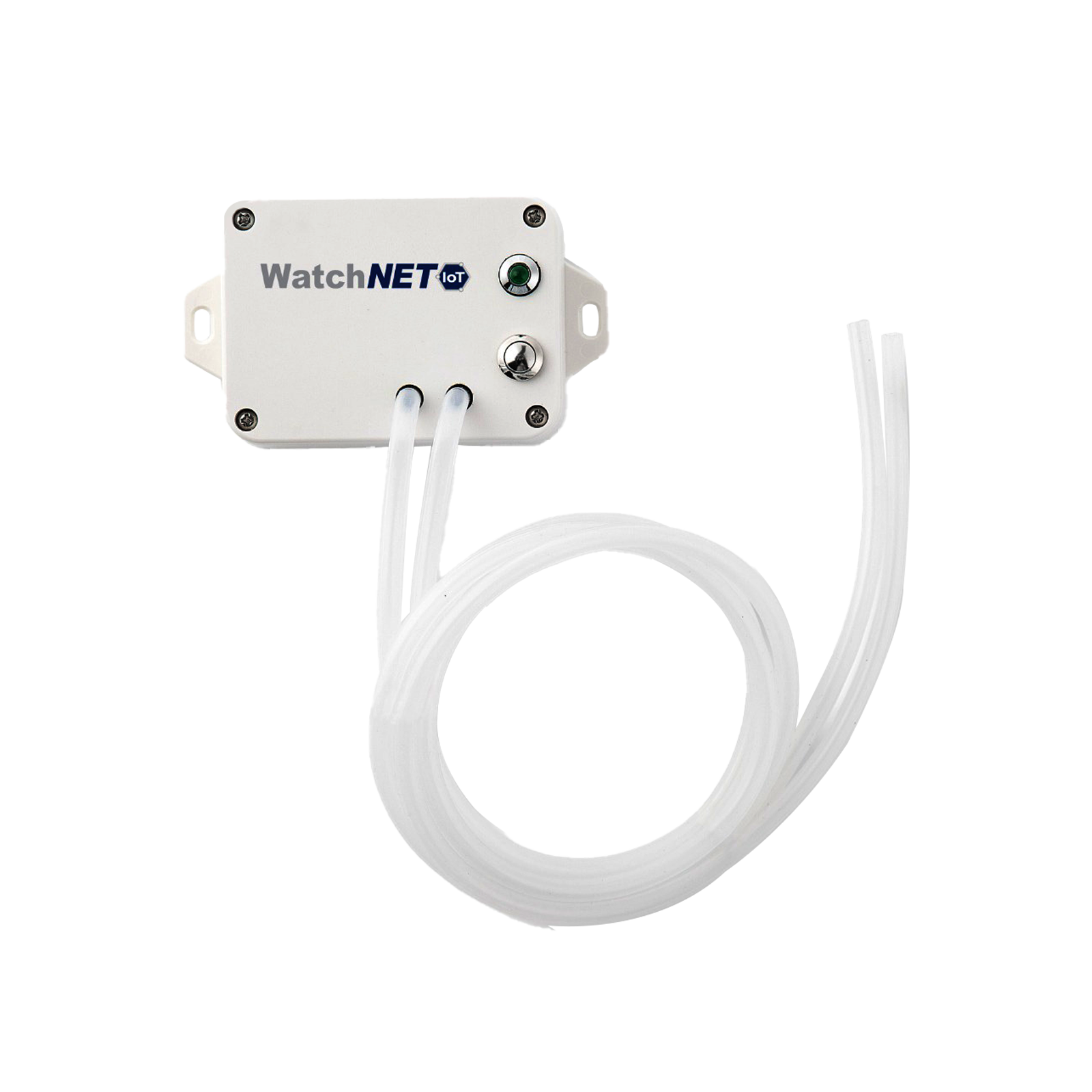

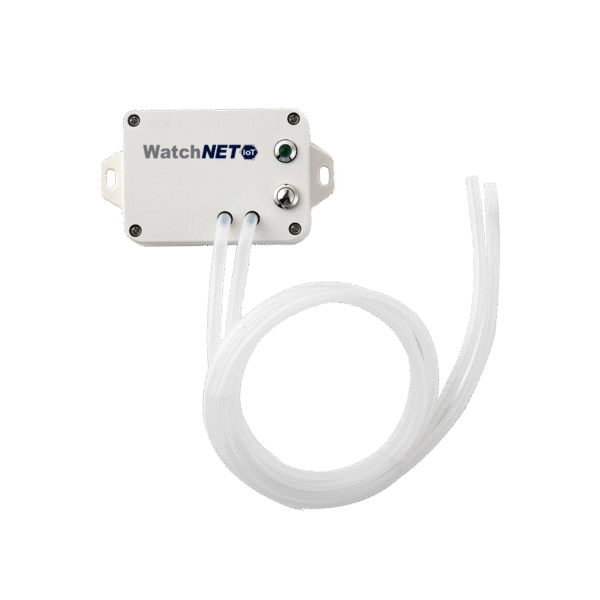

The WatchNET WLRC-DAPS is a wireless differential pressure and temperature sensor designed for smart HVAC and environmental monitoring applications. Featuring a LoRaWAN Class A-compatible SX1276 module, the device offers long-range, low-power communication. It’s powered by dual 3.6V lithium batteries with an average life of up to 3.8 years. With a built-in magnet for easy mounting, IP40-rated housing, and accurate pressure and temperature sensing, WLRC-DAPS is perfect for applications like air duct filter detection, pressure monitoring in AHUs, and smart building automation systems.

Features

  • Differential Pressure Monitoring: Measures -500 Pa to +500 Pa with ±3% accuracy

  • Temperature Monitoring: Measures ambient temperature from -20°C to +50°C

  • LoRaWAN Connectivity: Compatible with global bands (EU868, US915, AU915, AS923, IN865, etc.)

  • Long Battery Life: Up to 3.8 years (reporting every 15 minutes at 25°C)

  • Power Supply: Dual ER14505 AA lithium batteries (3.6V each)

  • Data Transmission: LoRa/FSK modulation; supports distance up to 1 km in open environments

  • Application Use-Cases:

    • Duct filter monitoring

    • Air handling unit (AHU) optimization

    • Environmental sensing in HVAC systems

    • Smart building automation

  • Installation: Magnetic base for easy mounting on metallic surfaces

  • Protection: IP40 rated enclosure

  • Sensor Accuracy:

    • Pressure: ±0.1 Pa, Span repeatability: 0.5%

    • Temperature: ±3°C

Applications

Measures the air quality, humidity, temperature, Particle PM1, PM2.5, PM4, PM10, TVOC in schools, childcare centers, offices and homes.

Download


View Data Sheet

Part Number

WLRC-DAPS
